An easy way to add a bar graph to your app in App Inventor

Oct 6, 2016 karen's Blog

This is a guest blog by MIT Master Trainer Clark Hochgraf

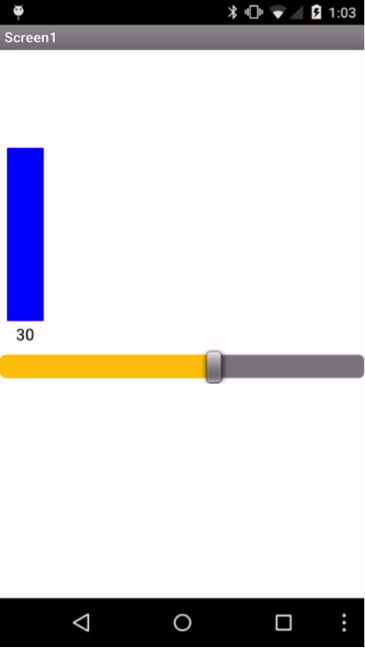

You can create a simple bar graph in App Inventor using a button and a vertical arrangement. In the image below, the blue bar is a button whose height percent is set by the slider.

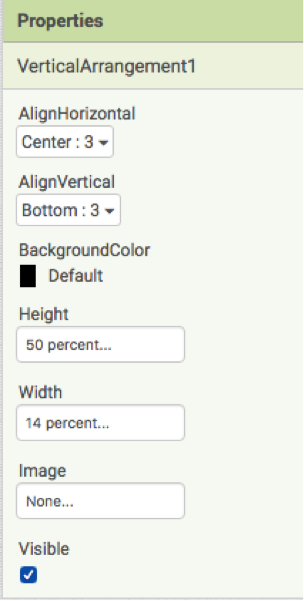

To create the bar graph, add a VerticalArrangement on the Designer Tab. Configure the vertical arrangement as follows:

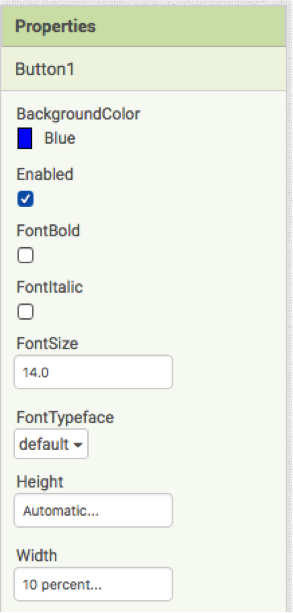

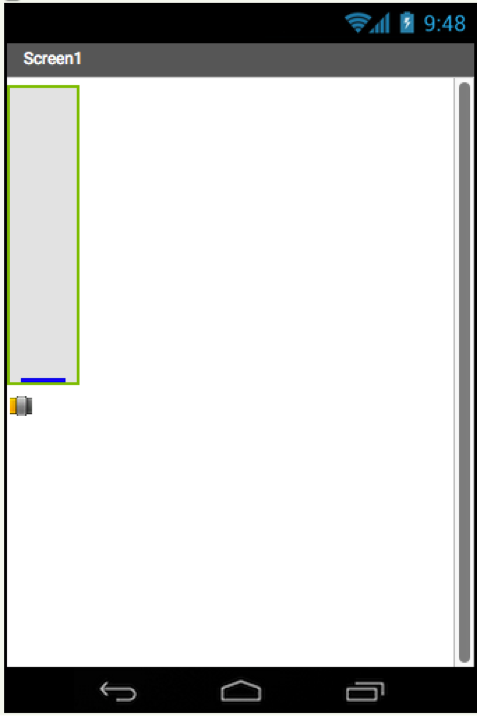

Next, place a Button inside the vertical arrangement. The button should appear at the bottom of the VerticalArrangement.

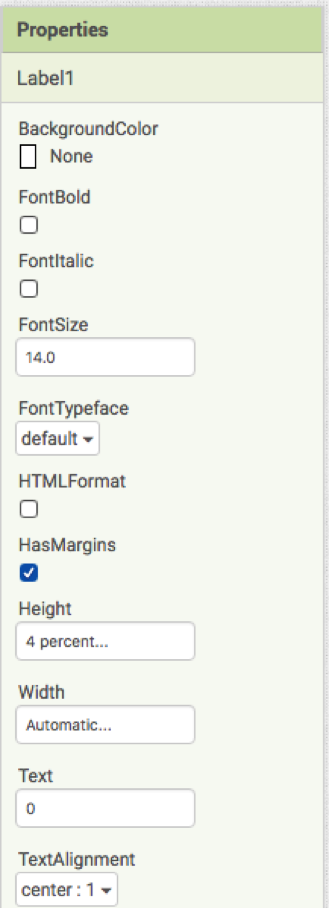

Next, place a Label inside the VerticalArrangement and position it so that it is below the Button.
