Mole Mash V2 with Sprite Layering

What You're Building

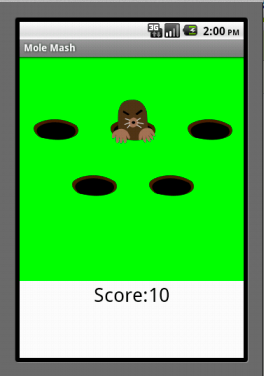

This tutorial shows you how to build a game similar to the Whac-A-Mole™ arcade game. The goal is to tap a mole that randomly pops out of one of five fixed holes. Every time you succeed, your score is increased by one point.

In order to highlight App Inventor features Any Component and ImageSprite Z-layering, this app takes a slightly different approach than the original Mole Mash tutorial, which you do not need to have completed in order to complete this one. You should, however, be familiar with the basics of App Inventor, using the Designer to build a user interface and using the Blocks Editor to code an app's behavior. If you are not familiar with the basics, try stepping through some of the basic tutorials before continuing.


This tutorial includes:

  1. Adding components in the Designer
  2. Using Any Component functionality to get and set properties of ImageSprite components
  3. Controlling game play with the Clock component
  4. Using Sprite Z-layering to ensure that one ImageSprite appears in front of another

Getting Started

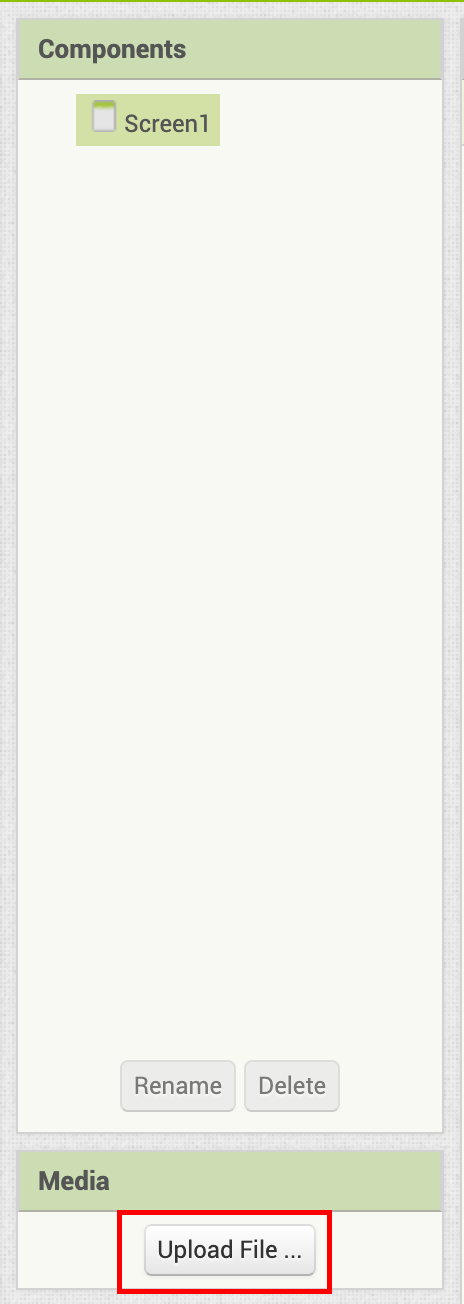

Open and start a new project. Set the screen's Title property to an appropriate name, such as "Mole Mash". Download the image files below (created by Yun Miao) to your computer by right-clicking on them, and then add them to your project by pressing the "Upload File ..." button in the Media pane.


Set up the Components

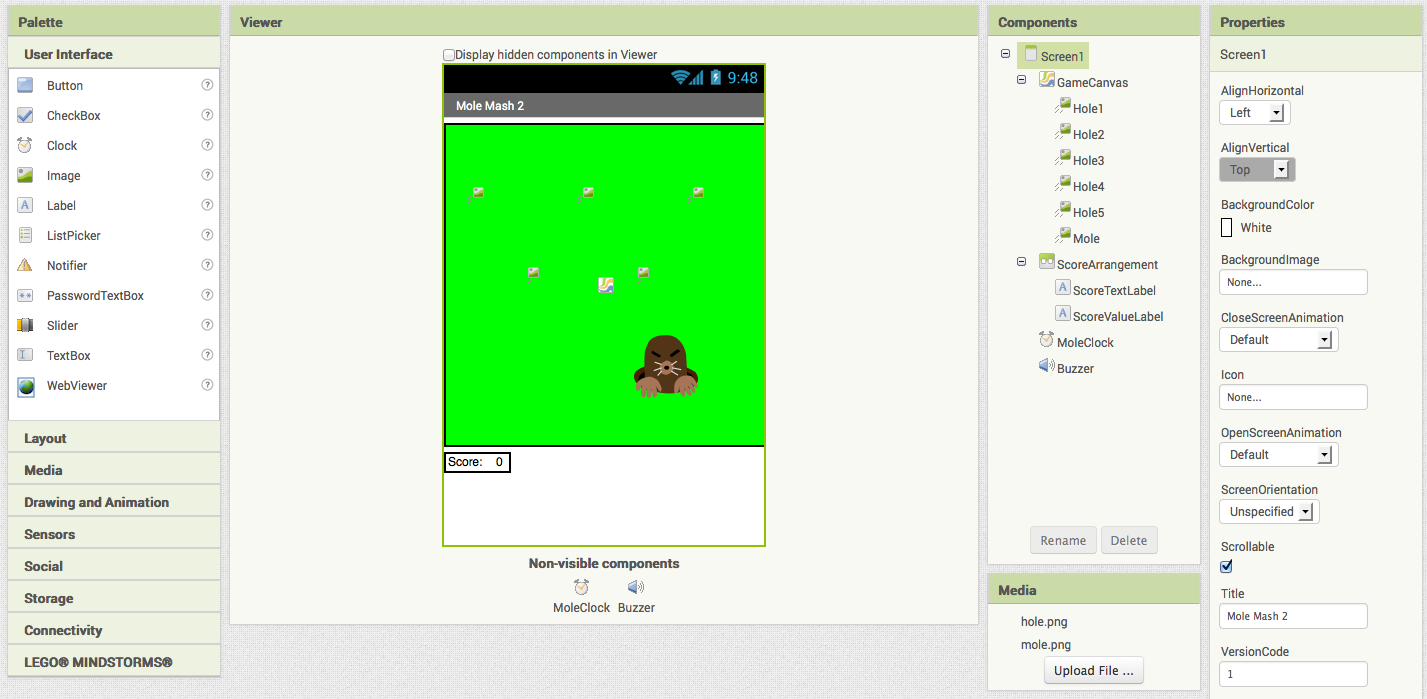

The user interface will contain a total of 6 ImageSprites: 5 unmoving holes and 1 mole. The mole will move on top of the holes. Use the Designer to create the user interface. When you are done, it should look something like the picture below. Don't worry about lining up the holes evenly. You will specify their locations through their X and Y properties. Additional instructions are below the image.

The following is the list of components you will add:

Component Type Palette Group What you'll name it Purpose of Component
Canvas Drawing and Animation GameCanvas The game field
ImageSprite (5) Drawing and Animation Hole1 ... Hole5 Holes from which the mole can appear
ImageSprite Drawing and Animation Mole The mole
HorizontalArrangement Layout ScoreArrangement To display the score
Label User Interface ScoreTextLabel To hold "Score: "
Label User Interface ScoreValueLabel To hold the score (# of times the mole was hit)
Clock User Interface MoleClock To control the mole's movement
Sound Media Buzzer To vibrate when the mole is touched

Make the following changes to the components' properties:

Component Action
Canvas1 Set BackgroundColor to Green. Set Width to 320 pixels. Set Height to 320 pixels.
Hole1 Set X to 20 and Y to 60 (upper left).
Hole2 Set X to 130 and Y to 60 (upper center).
Hole3 Set X to 240 and Y to 60 (upper right)
Hole4 Set X to 75 and Y to 140 (lower left).
Hole5 Set X to 185 and Y to 140 (lower right).
Mole Set Picture to "mole.png". Set Z to 2 so the mole appears in front of the other ImageSprites, which have the default Z value of 1.
ScoreTextLabel Set Text to "Score: ".
ScoreTextValue Set Text to "0".

Don't worry now about setting the Picture property for the holes; we'll set the property in the Blocks Editor.

Add Behaviors to the Components

Here is an overview of what we need to create blocks to do:

  1. Create global variable:
    • holes: a list of hole ImageSprites
  2. When the app starts:
    • Populate the list of holes.
    • Set each hole's Picture property to "hole.png".
    • Move the mole randomly to a hole.
  3. Create a procedure MoveMole to:
    • Set local variable currentHole to a random hole from the list holes.
    • Move the mole to the location of currentHole.
  4. When MoleClock.Timer triggers:
    • Call MoveMole to move the mole randomly.
  5. Implement a handler that does the following when the mole is touched:
    • Add one to the score.
    • Make the phone briefly vibrate.
    • Call MoveMole.

To proceed, switch to the Blocks Editor.

Creating Variables

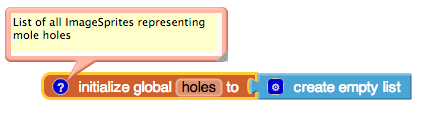

Create the variable and name it holes. For now, we will give it a "dummy" initial value of an empty list. We'll set the real initial value in the Screen1.Initialize event handler, which gets executed each time the app loads the screen. Here is a picture and list of the blocks you will need:

Block type Drawer Purpose
initialize global holes to Variables Hold a list of hole ImageSprites.
create empty list Lists Create an empty list, to be filled in when the program starts.

Comments (created by right-clicking on a block) are encouraged but not required.

Starting the App

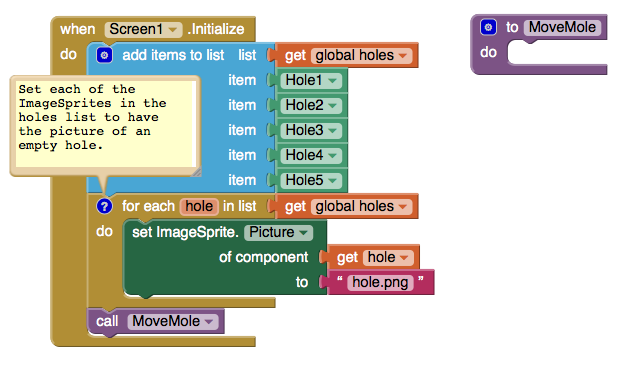

The first event to occur in any app is Screen1.Initialize, so we will put start-up code in that handler. Specifically, we will add the hole components to the list holes, set each hole's Picture property to "hole.png", and call MoveMole. Since we have not yet written MoveMole, we will create an empty procedure with that name, which we will fill in later.

Below are a table of the blocks you need to create. Note that the "Any ImageSprite" drawer is found under the "Any component" tab at the bottom of the list of Blocks in the Blocks Editor.

Block type Drawer Purpose
Screen1.Initialize Screen1 Specify what should happen when the app starts.
add items to list Lists Add the following values to ...
get global holes Variables ...the list of holes
Hole1 Hole1 -the upper left hole
Hole2 Hole2 -the upper center hole
Hole3 Hole3 -the upper right hole
Hole4 Hole4 -the lower left hole
Hole5 Hole5 -the lower right hole
for each hole in list Control Iterate through the holes list.
set ImageSprite.Picture of component ... to Any ImageSprite Set the Picture property of...
get global hole Variables ...the current hole ImageSprite
" " (hole.png) Text the picture of the empty hole.
to procedure (MoveMole) Procedures Create a procedure, to be filled in later, for moving the mole.
call MoveMole Procedures Call MoveMole to make the first placement of the mole.

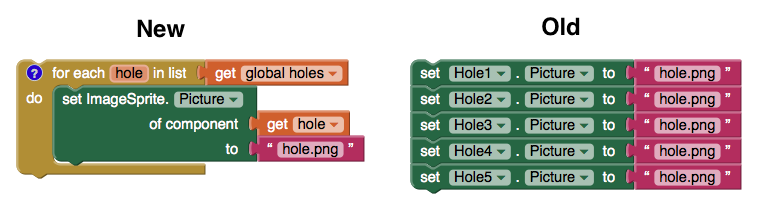

Compare the for each block to the equivalent blocks that would be necessary without it:

Not only is the left set of blocks shorter, it is less repetitious, sparing the programmer from semi-mindless copy-and-pasting and making it easier to modify, for example, if the name of the picture is changed.

Moving the Mole

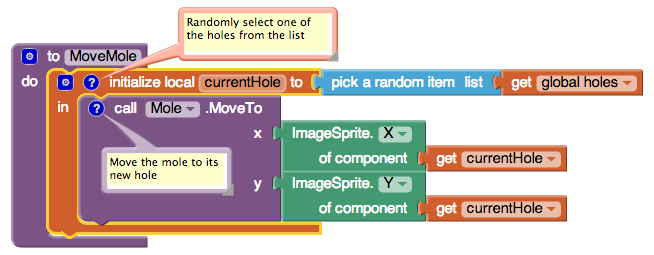

Now let's fill in the body of the procedure MoveMole, which we'll call when the program starts, when the mole gets touched, and when our Timer goes off every second. The procedure should pick a random hole and move the mole on top of it. Here are the compiled blocks and a table of the blocks used:

Block type Drawer Purpose
initialize local currentHole to
(there are two types of 'initialize local': take the one that fits the procedure block)
Variables Store the value of the current hole for use in the procedure.
pick a random item Lists randomly select a hole from the list
get global holes Variables list of hole ImageSprites
call Mole.MoveTo Mole Move the mole to the...
ImageSprite.X of component Any ImageSprite ..x-coordinate of...
get local currentHole Variables ...the chosen hole...
ImageSprite.Y of component Any ImageSprite ...and the y-coordinate.

We now need to specify that MoveMole should be called whenever MoleClock's Timer goes off. We just need two blocks to accomplish that:

Block type Drawer Purpose
when MoleClock.Timer MoleClock When the Timer goes off...
call MoveMole Procedures ...move the mole.

Registering Touches

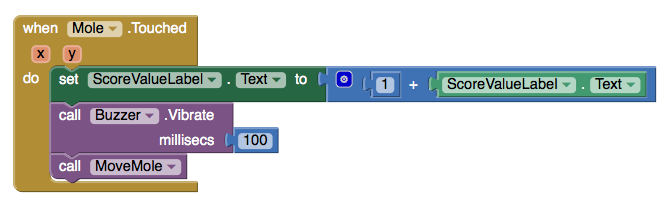

Finally, we need to specify what happens when the mole is touched. Specifically, we want to:

  1. Increment the score.
  2. Make the phone vibrate briefly.
  3. Move the mole.

We can easily translate these to blocks:

Block type Drawer Purpose
when Mole.Touched Mole When the mole is touched...
set ScoreValueLabel.Text to ScoreValueLabel ...update the visible score to...
+ Math ...the result of adding...
1 Math ...1 [and]...
ScoreValueLabel.Text ScoreValueLabel ...the previous score.
call Buzzer.Vibrate Buzzer Make the phone vibrate for...
100 Math ...100 milliseconds.
call MoveMole Procedures Move the mole to a new location.

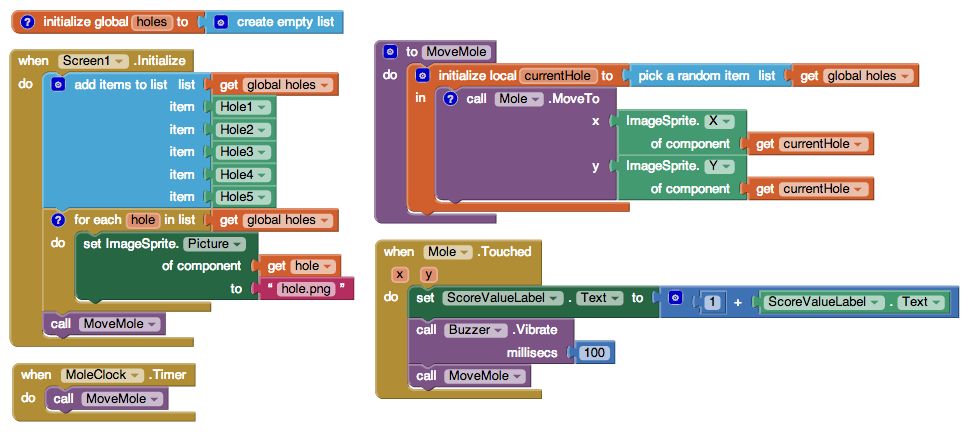

Final Program


Here are some variations you might want to implement:

You can see how to implement the first two variations in the original Mole Mash tutorial.


Here are some of the concepts covered in this tutorial:

Done with MoleMash 2? Return to the other tutorials here.
