MoleMash 2

What You're Building

App Inventor Classic • App Inventor Classic • FOR APP INVENTOR 2 CLICK HERE• App Inventor Classic • App Inventor Classic

This information pertains to App Inventor 1 (Classic). For tutorials about App Inventor 2, go to the App Inventor 2 Tutorials.
Download Refined Version (Book Chapter PDF)

This tutorial shows you how to build a game similar to the Whac-A-MoleTM arcade game. Specifically, your goal is to whack (tap) a mole that randomly pops out of one of five fixed holes. Every time you succeed, your score is increased by one point.

In order to highlight new App Inventor features the Advanced tab and Sprite Z-layering this app takes a different approach than the original Mole Mash tutorial, which you need not have read in order to do this one. You should, however, be familiar with the basics of App Inventor using the Component Designer to build a user interface and using the Blocks Editor to specify event handlers. If you are not familiar with the basics, try stepping through some of the basic tutorials before continuing.


This tutorial includes:

  1. Creating a list of components
  2. Using functionality from the Advanced section of the Blocks Editor to get and set properties of arbitrary components
  3. Having game events controlled by the Clock component
  4. Using Sprite Z-layering to ensure that one sprite (ImageSprite or Ball) appears in front of another

Getting Started

Connect to the App Inventor web site and start a new project. Set the screen's Title property to an appropriate name, such as "Mole Mash". Open the Blocks Editor and connect it to the phone. Download these image files (created by Yun Miao) by right-clicking on them, then add them to the project by pressing the "Add..." button in the Media pane.

Set up the Components

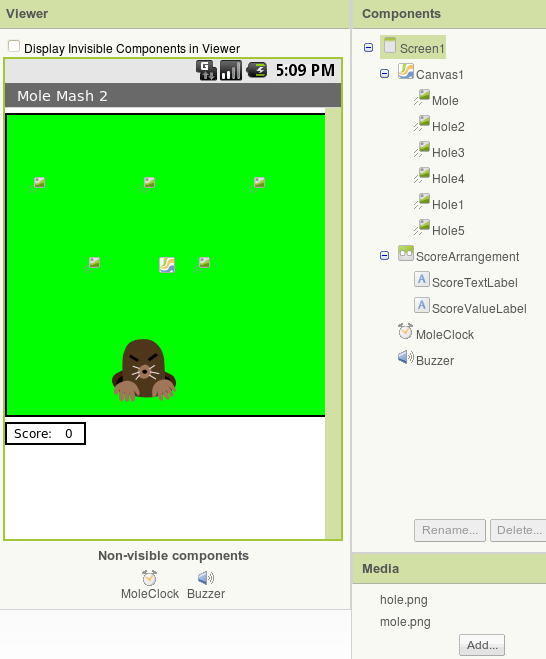

The user interface will contain a total of 6 ImageSprites: 5 unmoving holes and 1 mole, which will move on top of the holes. Use the component designer to create the user interface. When you are done, it should look something like the picture below. Don't worry about lining up the holes evenly. You will specify their locations through their X and Y properties. Additional instructions are below the picture.

Create the following components by dragging them from the Palette into the Viewer.

Component Type Palette Group What you'll name it Purpose of Component
Canvas Basic GameCanvas The game field
ImageSprite (5) Animation Hole1 ... Hole5 Holes from which the mole can appear
ImageSprite Animation Mole The mole
HorizontalArrangement Screen Arrangement ScoreArrangement To display the score
Label Basic ScoreTextLabel To hold "Score: "
Label Basic ScoreValueLabel To hold the score (# of times the mole was hit)
Clock Basic MoleClock To control the mole's movement
Sound Media Buzzer To vibrate when the mole is touched

Make the following changes to the components' properties:

Component Action
Canvas1 Set BackgroundColor to Green. Set Width to 320 pixels. Set Height to 320 pixels.
Hole1 Set X to 20 and Y to 60 (upper left).
Hole2 Set X to 130 and Y to 60 (upper center).
Hole3 Set X to 240 and Y to 60 (upper right)
Hole4 Set X to 75 and Y to 140 (lower left).
Hole5 Set X to 185 and Y to 140 (lower right).
Mole Set Picture to "mole.png". Set Z to 2 so the mole appears in front of the other ImageSprite s, which have the default Z value of 1.
ScoreTextLabel Set Text to "Score: ".
ScoreTextValue Set Text to "0".

Don't worry now about setting the Picture property for the holes; we'll set the property in the Blocks Editor.

Add Behaviors to the Components

Here is an overview of what we need to create blocks to do:

  1. Create variables:
    1. holes: a list of holes
    2. currentHole: the hole the mole is currently coming out of
  2. When the app starts:
    1. Populate the list of holes.
    2. Set each hole's Picture property to "hole.png".
    3. Call procedure MoveMole (below).
  3. Create a procedure MoveMole to:
    1. Set currentHole to a random hole from the list holes.
    2. Move the mole to the location of currentHole.
  4. Make MoleClock call MoveMole whenever its timer goes off (every second).
  5. Implement a handler that does the following when the mole is touched:
    1. Add one to the score.
    2. Make the phone briefly vibrate.
    3. Call MoveMole.

To proceed, open the Blocks Editor.

Creating Variables

Create the variables holes and currentHole. For now, we will give them "dummy" initial values; we'll set their real initial values in the Screen1.Initialize event handler, which is run when the app starts. (For technical reasons, components cannot be referred to in def blocks, which are run before the app has started.) Here is a picture and list of the blocks you will need:

Block type Drawer Purpose
def variable as (holes) Definition Hold a list of holes.
make a list Lists Create an empty list, to be filled in when the program starts.
def variable as (currentHole) Definition Hold the mole's current hole.
number (0) Numbers Provide a required initial value for currentHole.

As always, comments (created by right-clicking on a block) are encouraged but not required.

Starting the App

The first event to occur in any program in Screen1.Initialize, so we will put start-up code in that handler. Specifically, we will add the hole components to the list holes, set each hole's Picture property to "hole.png", and call MoveMole. Since we have not yet written MoveMole, we will create an empty procedure with that name, which we will fill in later.

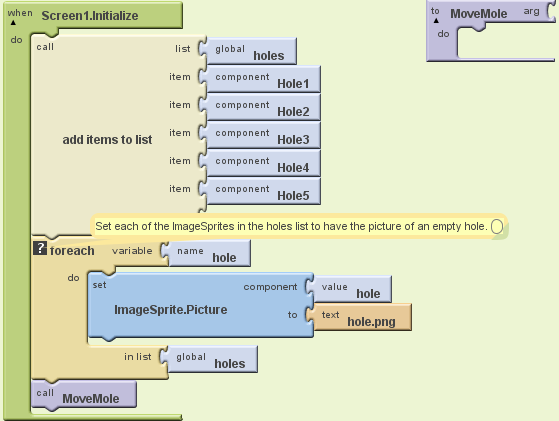

Below are a picture and table of the blocks you need to create. Note that the "Any ImageSprite" drawer is found under the "Advanced" tab to the right of "Built-In" and "My Blocks" in the Blocks Editor.

Block type Drawer Purpose
Screen1.Initialize Screen1 Specify what should happen when the app starts.
add items to list Lists Add the following values to...
holes My Definitions ...the list of holes:
component Hole1 Hole1 -the upper left hole
component Hole2 Hole2 -the upper center hole
component Hole3 Hole3 -the upper right hole
component Hole4 Hole4 -the lower left hole
component Hole5 Hole5 -the lower right hole
foreach Control Specify that we would like...
name (hole) Definitions ...a variable named "hole"...
holes My Definitions take on each of the values in the list holes .
ImageSprite.Picture Any Image Sprite Set the Picture property of...
value hole My Definitions ...the ImageSprite referred to by the variable hole ...
text (hole.png) Text the picture of the empty hole.
to procedure (MoveMole) Definition Create an procedure, to be filled in later, for moving the mole.
MoveMole My Definitions Call MoveMole to make the first placement of the mole.

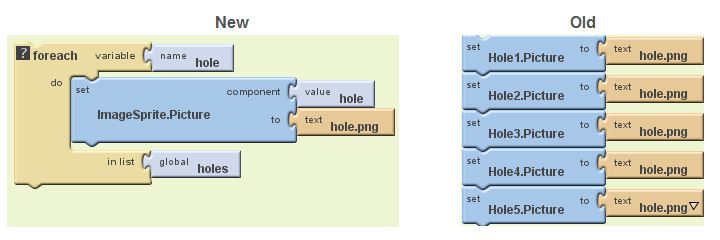

Compare the foreach block to the equivalent blocks that would be necessary without it:

Not only is the left set of blocks shorter, it is less repetitious, sparing the programmer from semi-mindless copy-and-pasting and making it easier to modify, for example, if the name of the picture is changed.

Moving the Mole

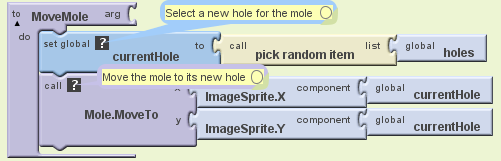

Now let's fill in the body of the procedure MoveMole, which we'll call when the program starts, when the mole gets touched, and when our timer goes off every second. What we want it to do is to pick a random hole and move the mole on top of it. Here are a picture and list of the new blocks:

Block type Drawer Purpose
set currentHole to My Definitions Save the...
call pick random item Lists ...randomly selected...
holes My Definitions ...hole.
call Mole.MoveTo Mole Move the mole to the...
ImageSprite.X Advanced/ImageSprite ..x-coordinate of...
currentHole My Definitions ...the chosen hole...
ImageSprite.Y Advanced/ImageSprite ...and the y-coordinate of...
current Hole My Definitions ...the chosen hole.

We now need to specify that MoveMole should be called whenever MoleClock's Timer goes off. We just need two blocks to accomplish that:

Block type Drawer Purpose
MoleClock.Timer MoleClock When the timer goes off...
call MoveMole My Definitions ...move the mole.

Registering Touches

Finally, we need to specify what happens when the mole is touched. Specifically, we want to:

  1. Increment the score.
  2. Make the phone vibrate briefly.
  3. Move the mole.

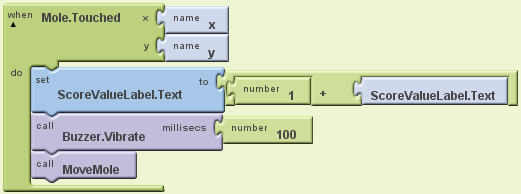

We can easily translate these to blocks:

Block type Drawer Purpose
Mole.Touched Mole When the mole is touched...
set ScoreValueLabel.Text to ScoreValueLabel ...update the visible score to...
block Math ...the result of adding...
number (1) Math ...1 [and]...
ScoreValueLabel.Text ScoreValueLabel ...the previous score.
call Buzzer.Vibrate Buzzer Make the phone vibrate for...
number (100) Math ...100 milliseconds.
call MoveMole My Definitions Move the mole to a new location.

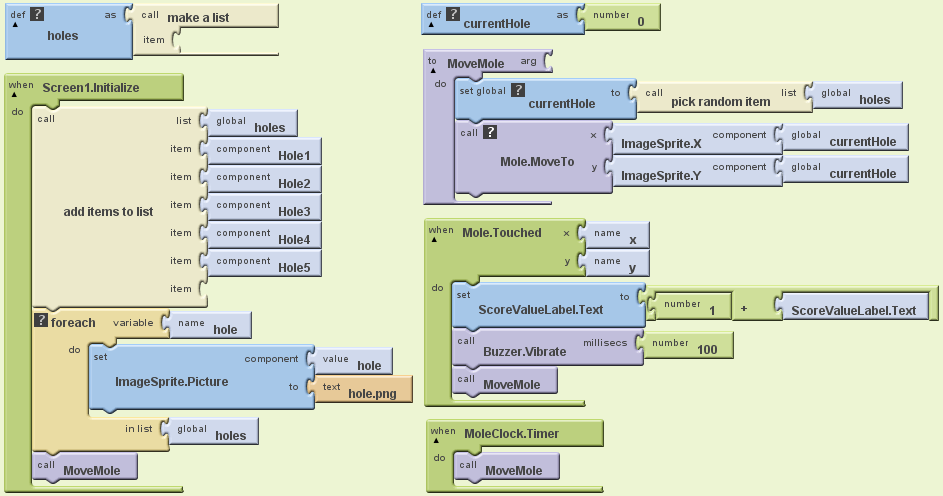

Final Program


Here are some variations you might want to implement:

You can see how to implement the first two variations in the original Mole Mash tutorial.


Here are some of the ideas covered in this tutorial:

Done with MoleMash 2? Return to the other tutorials here.

Scan the Sample App to your Phone

Scan the following barcode onto your phone to install and run the sample app.

Or download the apk

Download Source Code

If you'd like to work with this sample in App Inventor, download the source code to your computer, then open App Inventor, go to the My Projects page, and choose More Actions | Upload Source.
